Supersonic Tungsten Carbide Coating, Ceramic Coating, Surface Wear-Resistant Tungsten Carbide Coating

Application Fields: The company primarily focuses on ceramic coatings and currently provides comprehensive protective solutions for enterprises in industries such as power, steel, and cement—integrating protective coatings, customized protection scheme design, and engineering technical services. Our clients span multiple sectors including aerospace, petrochemicals, papermaking and printing, packaging, electronics, and transportation. Our service offerings cover a wide range of components and parts—including various shafts, pump and valve assemblies, sealing rings, sputtering targets, corrugated rollers, diverse valves, rolling mill rolls, fan impellers, wire-drawing tower wheels, and other highly wear-resistant products—providing thermal spraying coatings that offer multiple properties such as wear resistance, high-temperature resistance, corrosion resistance, electrical conductivity, and insulation. Wear resistance, anti-corrosion, thermal insulation, and papermaking; railways, machinery, automobiles, steel, petroleum, chemicals, printing, aerospace, and power & coal industries. Plasma-sprayed thermal barrier coatings and electrical insulation coatings: such as ZrO2 and Al2O3 coatings. Plasma-sprayed metal oxide wear-resistant coatings: such as Cr2O3 and Al2O3/Ti coatings, used for pump plungers, sealing rings, bushings, and wire-drawing rollers. Supersonic plasma-sprayed wear- and corrosion-resistant coatings: such as WC-Co, WC-Co-Cr, NiCr-Cr3C2, carbides, tungsten carbide coatings, and WC coatings, applied to turbine blades, fan impellers, valve bodies, and valve seats. Preparation of high-temperature radiation coatings: special metal oxides.

Category:

Coating spray processing

Tungsten Carbide Spraying and Processing

Key words :

超音速喷涂耐磨耐蚀涂层

等离子喷涂金属氧化物耐磨涂层

等离子喷涂热障涂层和电绝缘涂层

Request for quotation Phone: 020-84836251

Product Description

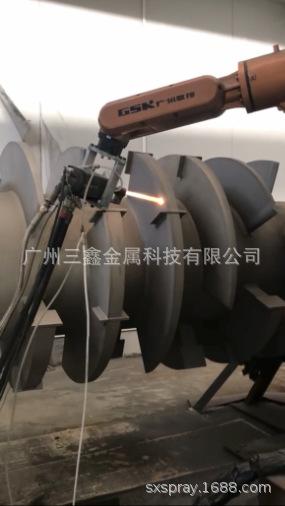

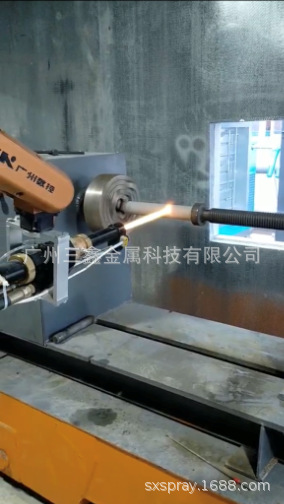

Supersonic tungsten carbide spraying and ceramic spraying manufacturer—accepting orders for wear-resistant surface coatings of tungsten carbide.

Characteristics of coating preparation:

1. The flame jet velocity is extremely high, typically five times the speed of sound.
2. The spraying speed of the powder is also extremely high, reaching up to 2,000 meters per second.
3. The coating is highly dense with strong bonding strength; its porosity can be less than 1%, and its bonding strength can exceed 70 MPa.
4. The coating material exhibits low oxidation and minimal carbon loss, resulting in high coating hardness.
5. The powder particles acquire substantial kinetic energy in the high-speed flame jet, resulting in significant impact effects on both the substrate and the deposited particles. Moreover, among the deposited particles, only a small fraction undergo liquid-to-solid phase solidification and shrinkage; the vast majority undergo solid-phase deformation instead. This process generates compressive stresses within the coating, which are beneficial for enhancing the coating’s reliability.
6. Certain specific materials, suitable for repair applications—Beijing Qinhé Technology.
7. The high-speed impact and intense deformation cause lattice distortion in the material, increasing its reactivity and thereby enhancing the likelihood of forming physical bonds with adjacent particles or matrix materials, resulting in extremely high coating reliability.
8. The workpiece does not deform.

Coating product features:

1. Wear-resistant coating —— its hardness is second only to that of diamond.

2. Corrosion-resistant coating—capable of withstanding corrosive environments such as hydrogen sulfide and saturated brine.
3. Cavitation-resistant coating—used in underwater working environments such as hydro turbines
4. Insulating Coating —— 3000V Voltage-Resistant Insulating Coating for Metal Workpieces
5. Surface Enhancement Coating – Graphite Surface Enhancement for Anti-Sticking Performance
6. High-temperature corrosion-resistant coating—withstanding ablation at temperatures up to 1900°C, mimicking high-temperature adhesion and damage to workpieces.
